3 12 The stress strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of resilience and the modulus of toughness for the material. C 9 ft (ksi) Prob. 3-8 105 90 75 60 • 3-9. The stress-strain diagram for a steel alloy having an original The stressstrain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. Determine approximately the modulus of resilience and the modulus of toughness for the... A tension test was performed on a steel specimen having an original

Answered: The stress-strain diagram for a steel… | bartleby Solution for The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Deterinine…

The stress-strain diagram for a steel alloy having an original diameter of 0.5 in

Solved The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an of original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, c and the ultimate load the specimen will support. The stress-strain diagram for a steel alloy ... (Solved) - The stress-strain diagram for a steel alloy ... 1 Answer to The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Calculate the modulus of elasticity, the yield strength, the ultimate stress, and the fracture stress. If the specimen is loaded until it is stressed to 50 ksi,... PDF Mechanics of Materials in SI Units Global Edition 10th ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. 0 70 60 50 40 30 20 10 0 s (ksi)

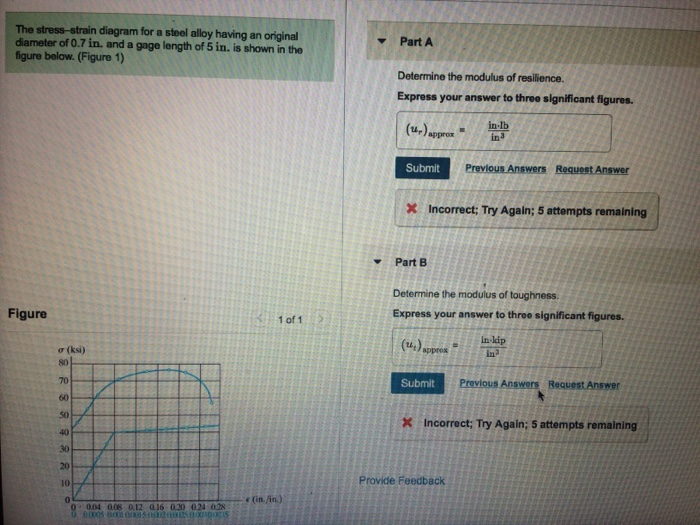

The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. SOLVED:The stress-strain diagram for a steel alloy having ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a Gage length of 2 in. is given in the figure, Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding and the ultimate load the specimen will support. Solved The stress -strain diagram for a steel alloy having ... The stress -strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi. determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. Solved Problem 3.4 The stress-strain diagram for a steel ... Transcribed image text: Problem 3.4 The stress-strain diagram for a steel alloy having an original diameter of 0.40 in. and a gage length of 3 in. is shown in the figure below. (Figure 1) Figure 1 of 1 (ksi) 80 70 60 50 40 30 20 10 € (in./in.) 0 0 0.04 0.08 0.12 0.16 0.20 0.24 0.28 0 0.0005 0.001 0.0015 0.002 0.0025 0.0030,0035 Part A Determine the modulus of elasticity for the material. Chapter 3, Mechanical Properties of Materials ... - Numerade The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded.

SOLVED:The stress-strain diagram for a metal alloy having ... The stress-strain diagram for a metal alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support. PDF HW 16 SOUTIONS - University of Utah 3—6. The stress—strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded. (r (ksi) e (in./in.) Solutions Manual for Mechanics Of Materials 9th ... - Issuu A tension test was performed on a steel specimen having an original diameter of 0.503 in. and gauge length of 2.00 in. Using the data listed in the table, plot the stress-strain diagram and... The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 90 ksi, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded.

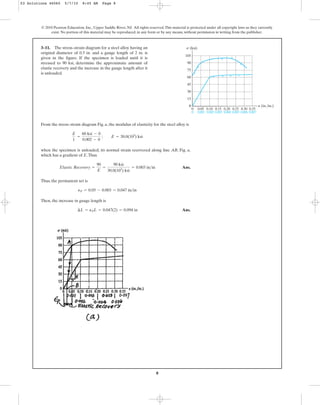

(PDF) Chapter | Mahmoud Kawash - Academia.edu The stress-strain diagram for a steel alloy having an s (ksi) original diameter of 0.5 in. and a gauge length of 2 in. is 105 given in the figure. If the specimen is loaded until it is stressed to 90 ksi, determine the approximate amount of 90 elastic recovery and the increase in the gauge length after it 75 is unloaded. [Solved] LEF The stress-strain diagram for a steel alloy ... LEF The stress-strain diagram for a steel alloy having an original diameter of 12 mm and a gauge length of 50 mm is given in the figure. Determine approximately a) the modulus of elasticity b) the yield stress c) the ultimate stress d) the rupture stress e) the modulus of resilience () the modulus of toughness g) % Elongation h) Final Length at failure h) Final Area at failure if v = 0.32 ... Solved The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.6 in and a gage length of 5 in. is shown in the figure below (Figure 1). The specimen is loaded until it is stressed to 70 ksi. Part A Determine the approximate amount of elastic recovery. Express your answer to three significant figures and include appropriate units. Solved The stress–strain diagram for a steel alloy having an ... The stress–strain diagram for a steel alloy having an original diameter of 0.60 in. and a gage length of 7 in. is shown in the figure below. (Figure 1) Figure 1 of 1The plot shows the stress as a function of the strain. The strain is measured from 0 to 0.28 inch per inch on the x axis.

Chapter 03

SOLVED:The stress-strain diagram for a steel alloy having ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 90 k s i, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded. Answer View Answer Discussion

PDF) mechanics of materials | Kalyso isemin - Academia.edu

Answered: The stress-strain diagram for a steel… | bartleby The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. σ (ksi) 80 70 60 50 40 30 10 e (in./in.) 0.04 0.08 0.12 0.16 0.20 0.24 0.28 0 0.0005 0.001 0 ...

Solved The stress-strain diagram for a steel alloy having an ...

PDF Stress - Strain Relationships Note: Stress-strain diagrams are typically based upon the original cross sectional area and the initial gage length, even though these quantities change continuously during the test. These changes have a negligible effect except during the final stages of the test. 2017-T451 Aluminum Alloy Load-deformation data Stress-strain data

Typical representation (shapes) of stress-strain curves of ...

(PDF) mechanics of materials | Kalyso isemin - Academia.edu The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of resilience and the modulus of toughness for the material.

Solved) - 3-6. The stress-strain diagram for a steel alloy ...

The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 0.5 in . and a gage length of 2 2 in . is given in the figure. If the specimen is loaded until it is stressed to 70 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. Explanation Reveal next step

The elastic portion of the stress-strain diagram for an alum ...

SOLVED:The stress-strain diagram for a steel alloy having ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. Answer View Answer Discussion

Solved The stress-strain diagram for a steel alloy having an ...

DOC EGR 280 - Mechanics Problem Set 1 - Oakland University The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support. Ans: E = 40x103 ksi Py = 7.85 kip Pu = 15.0 kip

Determination of true stress-strain curve of type 304 and 316 ...

The stress-strain diagram for a steel alloy having an ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 0.5 in. and a gage length of 2 2 in. is given in the figure. Determine approximately the modulus of resilience and the modulus of toughness for the material. Explanation Create a free account to see explanations Continue with Google Continue with Facebook

SOLVED:The stress-strain diagram for a steel alloy having an ...

The stress-strain diagram for a steel alloy having an The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is. given in the figure. Determine approximately the modulus of resilience and the modulus of toughness for the material.

Concepts of Stress and Strain

CST 53.pdf - A tension test for a steel alloy results in ... The stress - strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 90 ksi, determine the approximate amount of elastic recovery and the increase in the gauge length after it is unloaded. *3 - 12.

Solved The stress-strain diagram for a steel alloy having an ...

The stress-strain diagram for a steel alloy having an origin ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 0.5 in and a gage length of 2 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support. Explanation Verified Reveal next step

Objectives Students will be able to label a stress-strain ...

PDF Mechanics of Materials in SI Units Global Edition 10th ... The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gage length of 2 in. is given in the figure. If the specimen is loaded until it is stressed to 70 ksi, determine the approximate amount of elastic recovery and the increase in the gage length after it is unloaded. 0 70 60 50 40 30 20 10 0 s (ksi)

Solved Problem 3.4 Part A The stress-strain diagram for a ...

(Solved) - The stress-strain diagram for a steel alloy ... 1 Answer to The stress-strain diagram for a steel alloy having an original diameter of 0.5 in. and a gauge length of 2 in. is given in the figure. Calculate the modulus of elasticity, the yield strength, the ultimate stress, and the fracture stress. If the specimen is loaded until it is stressed to 50 ksi,...
