reming ton 700/7 Timney offers Remington 700 triggers with and without a safety in both left and right hand. These instructions apply to all Timney, Remington 700 triggers. STEP 1: Remove the bolt from the action and the action from the stock. STEP 2: Move safety lever to the safe position and then tap the front trigger pin left to right far enough How I tune a R700 factory Trigger.Chat with me on Facebook https://goo.gl/WGXDPjSend me pics of your rigs https://www.instagram.com/milliradians/

Re: Remington 700 x mark trigger springs? Flynlow, The spring you indicated on the diagram is the sear return spring. They are easy to lose if the trigger is out of the gun and the trigger pins are not replaced to hold the sear in place.

Remington 700 trigger diagram

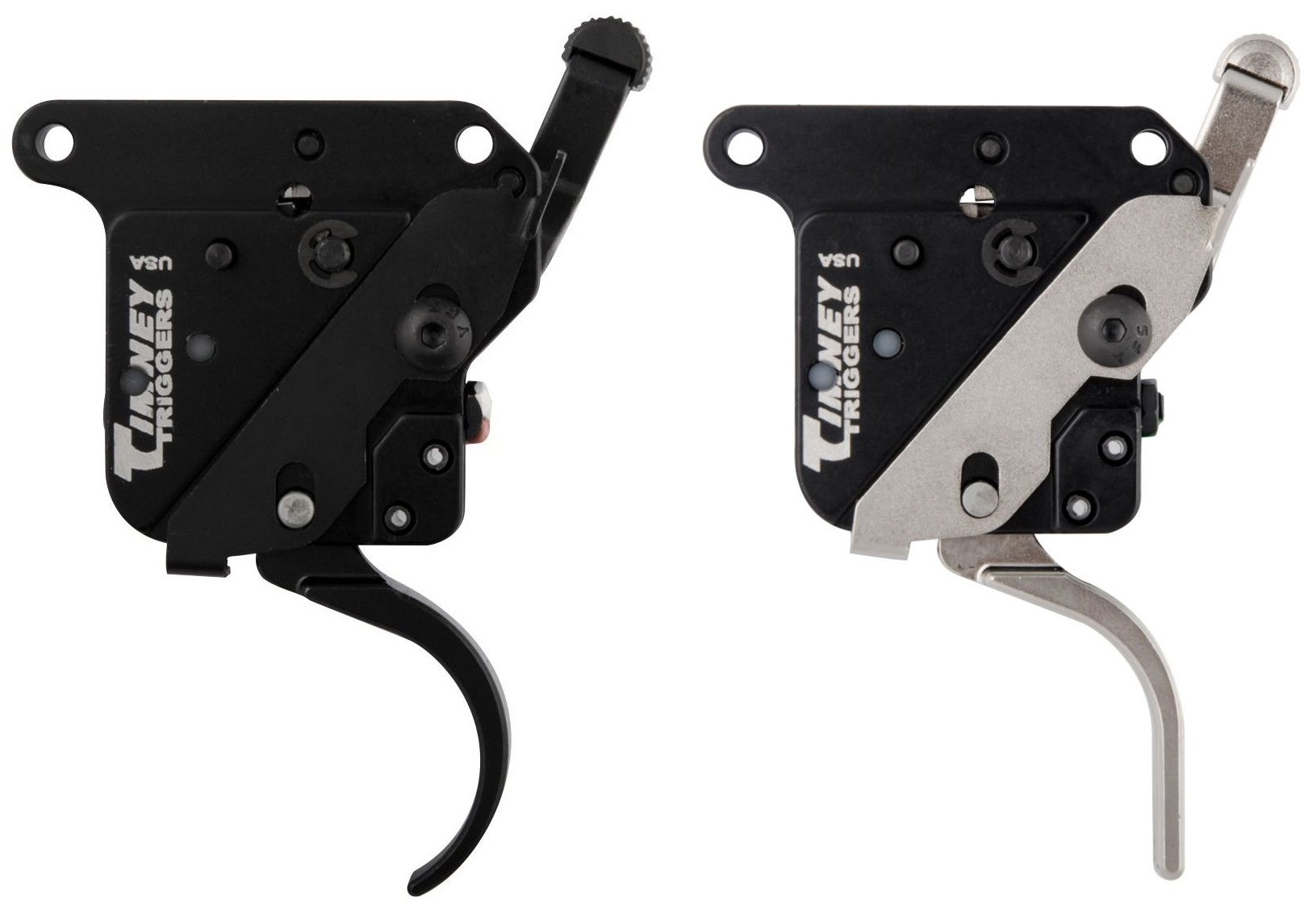

5.0 (1) REMINGTON 700 2 STAGE TRIGGER. TIMNEY. (In Stock) Click here for price! $189.99 - $199.99. 4.0 (1) ELITE HUNTER REMINGTON 700 TRIGGERS. TIMNEY. A Closer Look at the Remington 700's Faulty Trigger on '60 Minutes' ... This exploded diagram of a Remington Model 700 shows its X-Mark Pro trigger, part #46.Remington Owner's Manual. QuickView. Timney Trigger for Remington 700 with Safety Flat Trigger Shoe Adjustable from 1... Timney Trigger for Remington 700 with Safety Flat ... 5.0. Our Low Price. $159.95. QuickView. Timney Remington Model 700 Drop In 2-Stage Straight Trigger With Safety Aluminum... Timney Remington Model 700 Drop In 2-Stage Straigh...

Remington 700 trigger diagram. This video leads you through step by step how to safely and correctly replace your Remington 700 trigger. For more information please visit http://www.browne... m-700 la magazine extender 270 to 30-06 replaces the floor plate additional 2-3 shot depending on caliber in magnum 1 shot aditional tc mfg: new: 0: 30.00: m-700 adl box sa with box spring and follower: new: 2: 25.00: m-700 magazine extention 2 extra shots sa: new: 0: 35.00: m-700 adl trigger guard metal image : new: 0: 28.00: m-700 adl trigger ... Adjusting The Remington M700 Trigger ( simple accurizing tips part 2 ) By. Shawn - January 2, 2013. 3. 2346. Facebook. Twitter. Pinterest. WhatsApp. I am sure this info can be found on other places online, but the way I am going to show you is the simplest and fastest way to adjust the trigger on a M700. When done correctly this gives a very ... Team 40X. If your Trigger looks like the diagram below then there is hope for a nice 20oz trigger. Or less if you want to experiment. Remove all the adjusting screws and springs. Be careful you do not lose the little ball bearing when you remove the "Trigger Adjusting Screw" - the spring might send it flying. No Screws you say?

Remington 700 trigger assembly diagram remington 700 trigger assembly drawing remington 700 trigger assembly schematic remington 700 trigger diagram remington 700 trigger exploded view remington 700 trigger schematic. Remington 700 sps tac308 mdt lss chassis krg bolt lift magpul prs stock a quick diagram assured me it was the hammer for the x mark trigger that was. A rifle trigger is made up ... Remington 700 HIT Trigger. The World's Finest Triggers. TRIGGER INSTALLATION INSTRUCTIONS. Thank you for purchasing this Timney Trigger.3 pages Step 1: Ensure rifle is clear and empty. Remove the magazine and bolt. Access your action screws. Loosen action screws (x2). Remove the action from your stock or chassis. Drift the front trigger pin from left to right. You don't need to punch it all the way out, just enough to get the trigger mechanism out. To fully understand the operations and failures of the Remington-Walker trigger, the drawings and the text of the patent are MOST important. Print it out, if possible, for ready reference. It is the heart of the Remington 'problem' in 600 and 700 series triggers. This applies to all models but the M-788 which has a one piece trigger design in it.

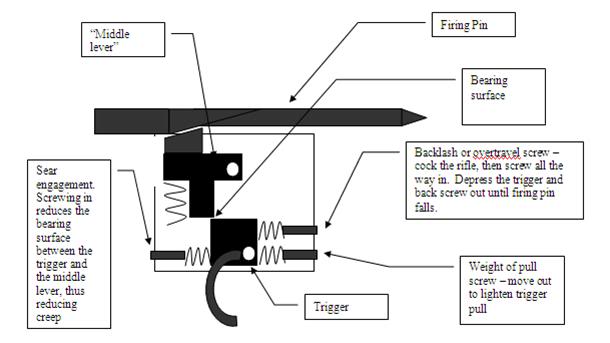

Brownells is your source for Remington 700 Replacement Trigger at Brownells parts and accessories. The trigger is available as a set pull weight from 1.5 pounds to 4 pounds or fully adjustable for sear engagement, over travel and pull weight. Remington 700 trigger adjustment diagram only remington parts. Remington 799 Featherweight Deluxe. Feb 13, 2014. #1. I'm working on my model 700 the trigger is well horrible. I've adjusted it and it has a rubbery feel at the bottom before the release, and this will not allow consistent pull weight or feel. Does anyone have a good exploded picture of the 700 trigger I may just take it apart and clean it, and or stone it. The Remington 700 Trigger has three screws as shown in the following image. When you look at your trigger you will see that the heads of these screws are covered in a glue or loctite. To adjust your trigger it will be necessary to scrape this glue off the screw heads and then determine if your screw heads are slotted or allen head. Remington 700 Adjustment Guide . Sear Engagement. Sear Engagement is set at the Timney Factory and should not need to be adjusted. Verify rifle is unloaded. ... 050 Allen Wrench until it stops; turn screw counter clockwise until safety moves easily from position to position but trigger will not move when safety is engaged.

Manufacturing Diamonds Triggertech

REMINGTON 700 Timney offers Remington 700 triggers with and without a safety in both left and right hand. These instructions apply to all Timney, Remington 700 triggers. STEP 1: Remove the bolt from the action and the action from the stock. STEP 2: Move safety lever to the safe position and then tap the front trigger pin left to right far enough to free the trigger assembly. Tap the rear pin ...

Video Shows How To Replace Remington 700 Trigger Daily Bulletin

remington 700 parts list Find Remington 700 parts and schematics to complete your latest project. Numrich Gun Parts has a large inventory of Remington 700 parts and has been serving shooting enthusiasts since 1950.

Best Trigger What The Pros Use Precisionrifleblog Com

The Remington 700 is popular for being one of the best bolt-action rifles series to suit a variety of applications, such as military sniping, hunting, and tactical operations. However, many users prefer to upgrade their triggers or get replacements as spares in case the factory trigger fails. A weak trigger is dangerous as it could cause an unintentional discharge of your weapon and that is ...

Remington 700 Trigger Assembly Stainless Steel 24443 Replacement Parts At Sportsman S Guide

Timney Elite Hunter Remington 700 Before beginning work on any ﬁrearm, remove the ammunition soucer . Visually and physically check to ensure the chamber is empty. Step 1: Remove the bolt from the action and the action from the stock. Step 2: Once the safety lever is engaged, tap the front trigger pin left to right enough to clear the trigger assembly.

Remington 700 Trigger Maintenance Shooters Forum

Complete Remington 700 BDL Parts List and Schematic Remington 700 BDL Parts List and Schematics Part # Part name: Remington Part # 1 Remington 700 Barrel Bracket/Lug Steel Unfinished F14810 1 Remington 700 Barrel Bracket Lug Stainless Steel Silver F97483 2 Bolt Handle, Left […]

Remington 700 22 250 Long Action Rifle Trigger Assembly Slink S Gun Parts

TRIGGER INSTALLATION INSTRUCTIONS remington 700/7. Timney offers Remington 700 triggers with and without a safety in both left and right hand.2 pages

Eabco Com

Remington 700 trigger assembly diagram. Browse the selection of remington 1100 parts and accessories today. Never make an adjustment to the trigger or. A rifle trigger is made up of several components. These gun diagrams will help you better understand how your firearm is assembled with links to the gun parts for easy check out. Part key56 product. Buy remington model 700 parts factory ...

Remington 700 Short Action 308 Trigger Assembly 473 Bolt Face Externally Adjustable X Mark Pro Omaha Outdoors

Remington 700 BDL Schematic. Find parts for a Remington 700 BDL in this easy-to-understand schematic. These gun diagrams will help you better understand how your firearm is assembled with links to the gun parts for easy check out. Short Action Long Action. Short Action. Click a Part: Barrels 1. Barrel; Shop Short Action Barrel Parts; Bolt Parts 2. Bolt; 3. Bolt Plug; 4. Bolt Stop; 5. Bolt Stop ...

De Gunking A Jewell Trigger Speedy Shows How Daily Bulletin

Disclaimer: Adjusting a Remington 700 trigger is quite simple. Be careful as too light a trigger pull can be quite dangerous. Do not adjust a 700 trigger so low that it will go off when you do not intend it to. Remember, you do not have as much control with gloves on. After adjusting a trigger, you want to slam the but of the rifle down on the ...

Rem 700 Blue Sa W 223 Bolt And X Mark Trigger Mysite

REMINGTON 700 PARTS LIST. Find Remington 700 parts and schematics to complete your latest project. Numrich Gun Parts has a large inventory of Remington 700 parts and has been serving shooting enthusiasts since 1950.

Rifle Basix L 1 Remington 700 Trigger

The Remington trigger: The Remington 700 Trigger has three screws as shown in the following image. Image was of the trigger assembly right side view with safety to the left. There are two screws in front of the trigger and one above and rear of trigger. That last one is the sear adjustment screw. I personally do NOT touch that one ever.

Rifle Basix Remington Model 700 Trigger Replacement Youtube

Sent my rem 700 ADL in 7 rem mag for trigger replacement. It came back with a horrible 'Bela Lugosi' type trigger pull. Does This new trigger adjusts the same way as the old ones did? Any suggestions would be welcomed. I adjusted a couple of the older triggers back in the day. Just seeing if...

Remington 700 From 1992 The Firearms Forum

Best Remington 700 Triggers 1. Timney Model 510. This is a basic drop-in trigger available for both right and left-hand rifles. The trigger is available as a set pull weight from 1.5 pounds to 4 pounds or fully adjustable for sear engagement, over travel and pull weight.

Remington S New Adjustable X Mark Pro Trigger The Firearm Blog

QuickView. Timney Trigger for Remington 700 with Safety Flat Trigger Shoe Adjustable from 1... Timney Trigger for Remington 700 with Safety Flat ... 5.0. Our Low Price. $159.95. QuickView. Timney Remington Model 700 Drop In 2-Stage Straight Trigger With Safety Aluminum... Timney Remington Model 700 Drop In 2-Stage Straigh...

60 Minutes Investigates The Remington 700 Trigger Recall

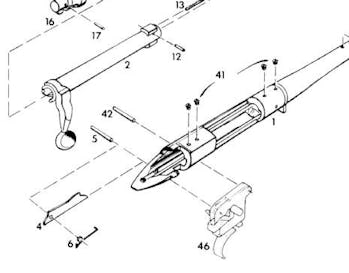

A Closer Look at the Remington 700's Faulty Trigger on '60 Minutes' ... This exploded diagram of a Remington Model 700 shows its X-Mark Pro trigger, part #46.Remington Owner's Manual.
